Elevator Speed Limiter XS18 XS18A XS3-B
Elevator Speed Limiter XS18 XS18A XS3-B
XS12A
XS12D
Product Introduction
Product introduction
Elevator Speed Limiter XS18 XS18A XS3-B. XS12B XS12A XS12D XS1 Hebei Dongfang Elevator Speed Limiter Thyssen Tongli Shanghai.

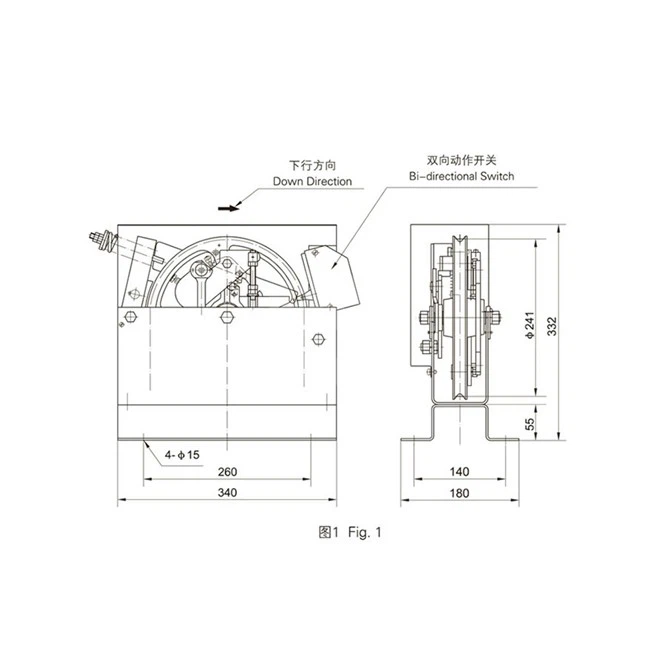

XS18 two-way speed limiter
1,Rated speed V:0.5m/s-1.75m/s
2,Wire rope tension F:800N-1500N
3,Wire rope diameter Φ:8mm
4,Rope sheave knuckle diameterΦ:241mm
5,The applicable range of lifting height.
a) Tensioning device tensioning force 350N: H≤80m
b) Tensioning device tensioning force 450N: 80m＜H≤12
Product parameter
| Type | Elevator Parts |
| category | Elevator Speed Limiter |
| business type | Manufacturer |
| Brand | General |
| Model | XS18 XS18A XS3-B. XS12B XS12A XS12D XS1 |
| original | CHINA |
| Warranty Time | one year |
| Certificates | ISO9001 |
